Bus Bars

About the product

Sofia Med’s extruded copper bus bars are engineered for high performance across industries. Used in electrical infrastructure, e-mobility, mechanical systems, and architectural applications, they ensure excellent conductivity, thermal stability, and durability.

About the product

Manufactured from controlled raw materials using advanced extrusion and drawing processes, our bus bars meet international standards (EN 13601, JIS H 3250 / H 3140, ASTM B 187) and are produced under ISO 9001:2015-certified quality management. Ideal for switchboards, transformers, socket panels, and other critical electrical applications, they combine precision, reliability and versatility.

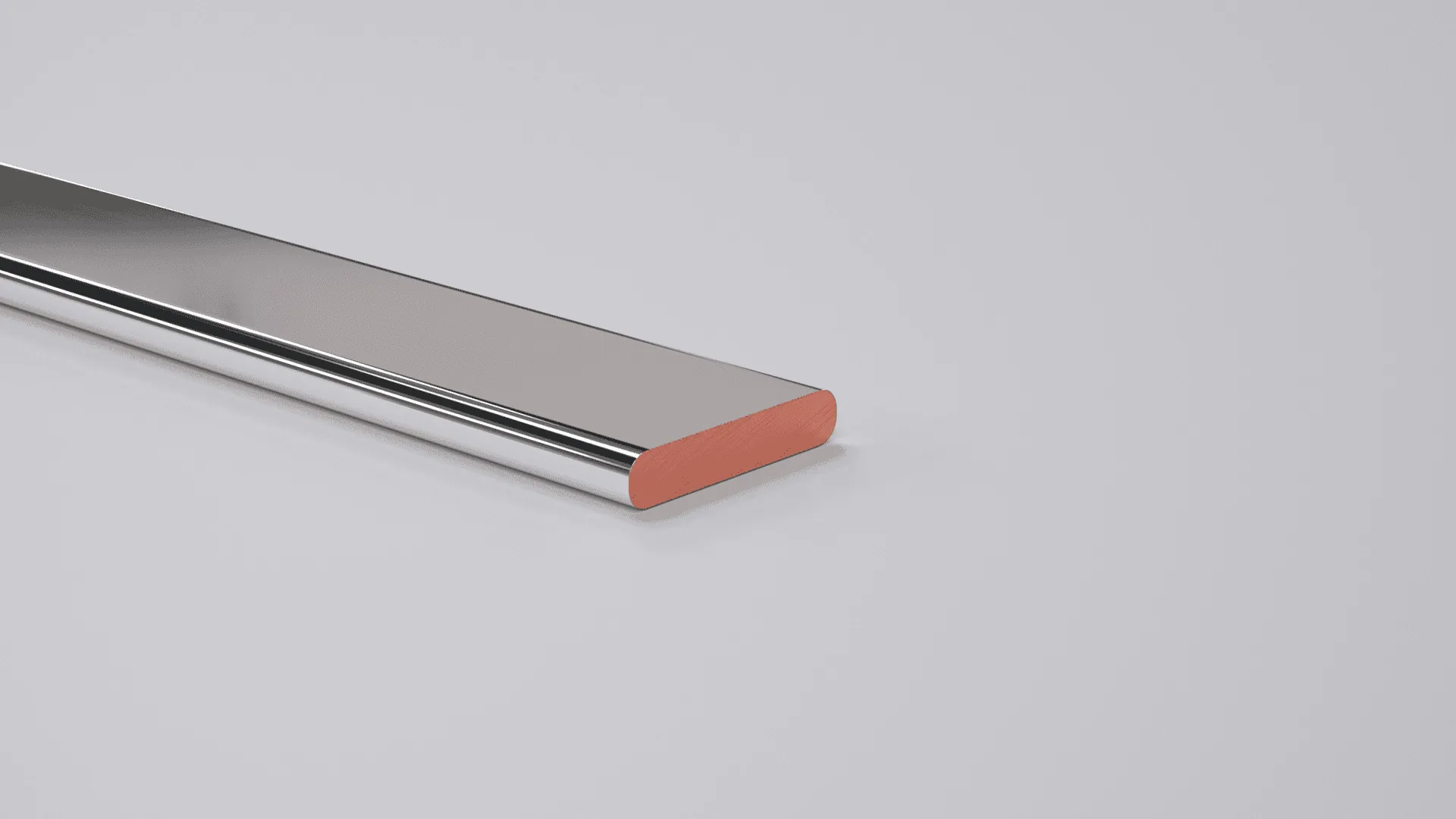

Sofia Med provides surface finishes for copper bus bars, including tin, electrolytic silver and silver flash plating, enhancing conductivity, corrosion resistance, and solderability.

More

Caption

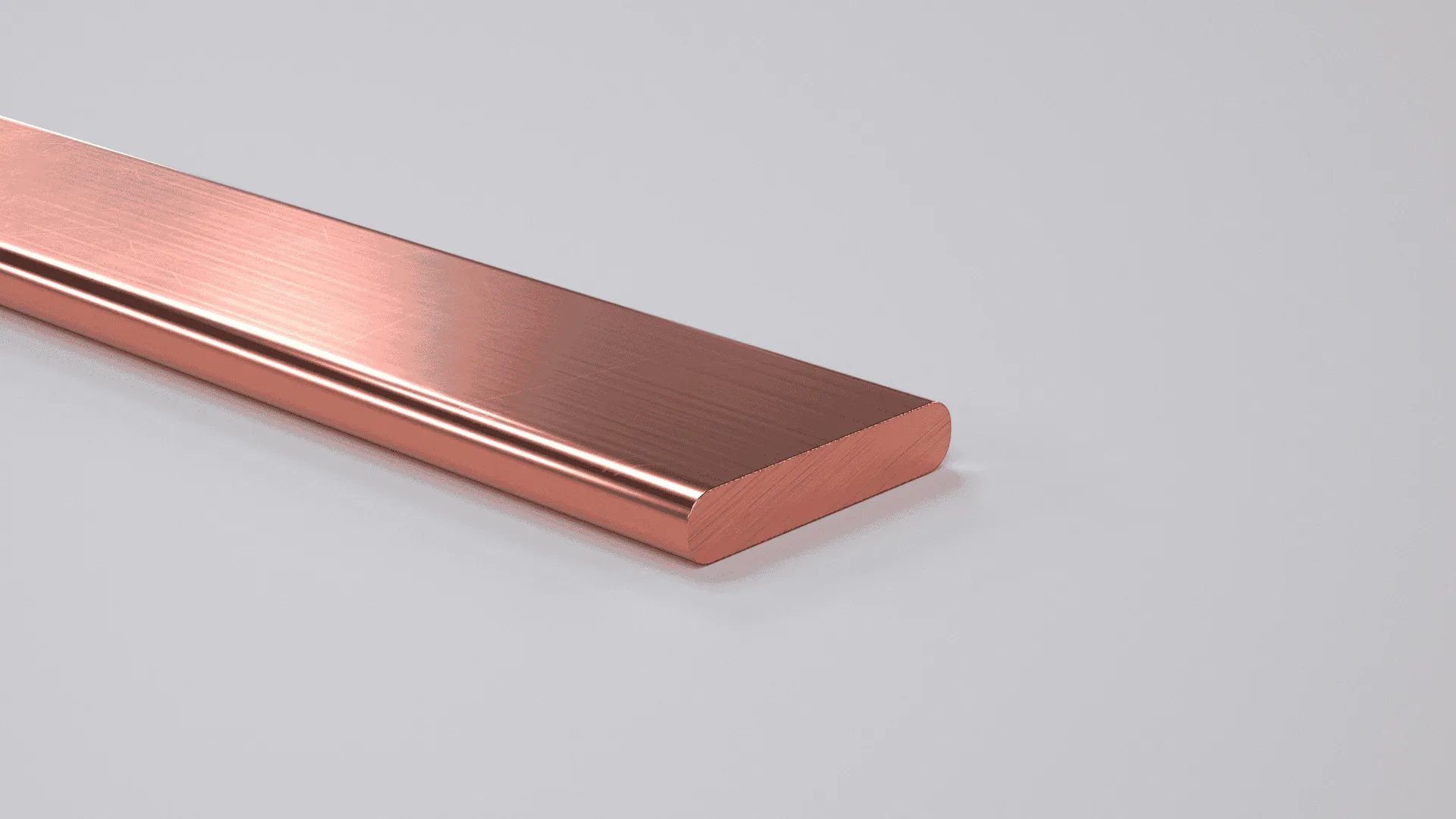

Bus bars, with sharp, round or full radius edges, in standard straight lengths from 3000 to 5000 mm (we also produce non-standard lengths from 2000 to 6000 mm) and tempers from R230 to R300, including all intermediate tempers.

Thickness (mm)**Width (mm)Packing
from 2 to 60 mmfrom 8 to 250 mmOn pallets and or wooden cases of about 500 kg or 1000 kg

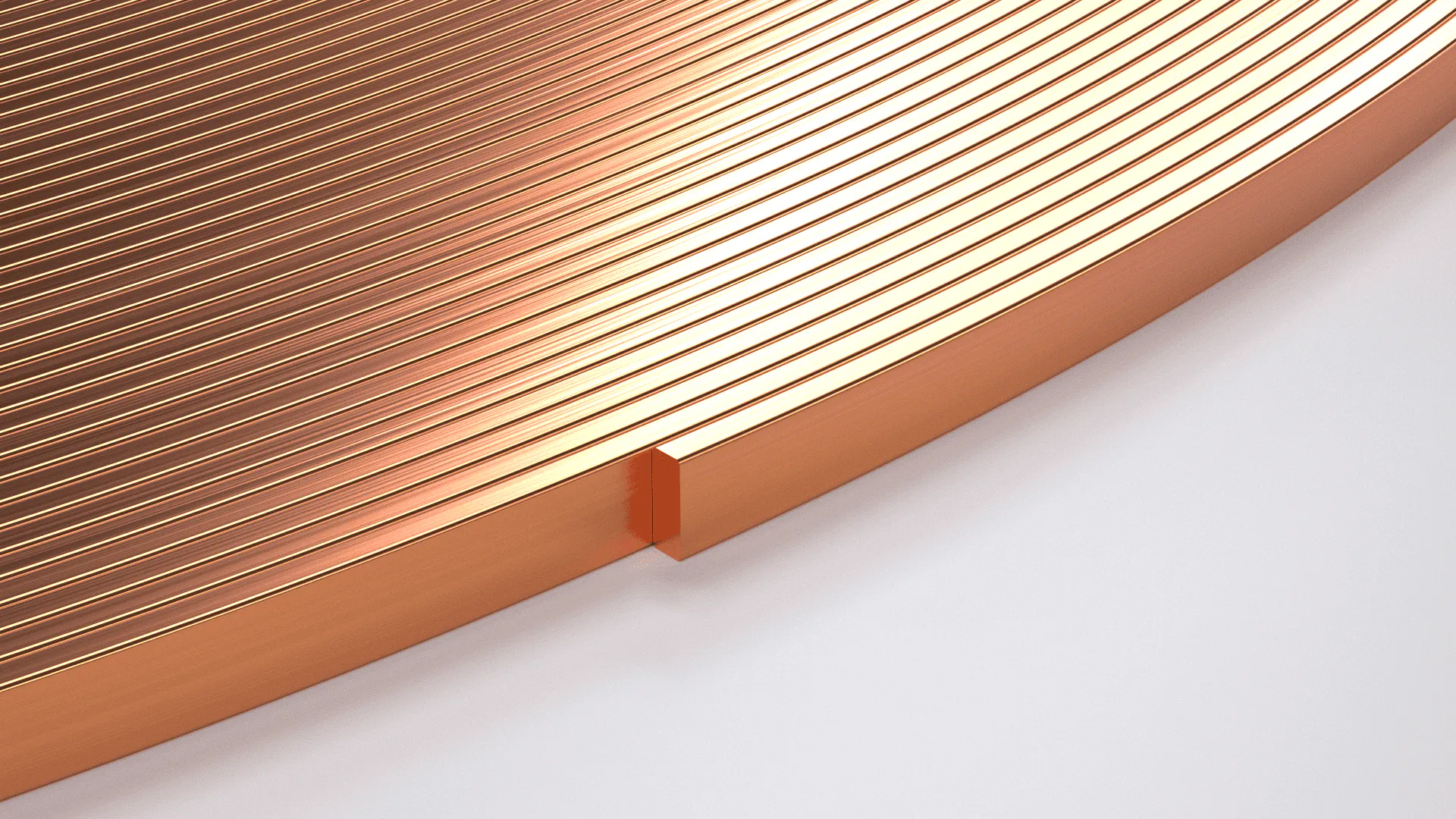

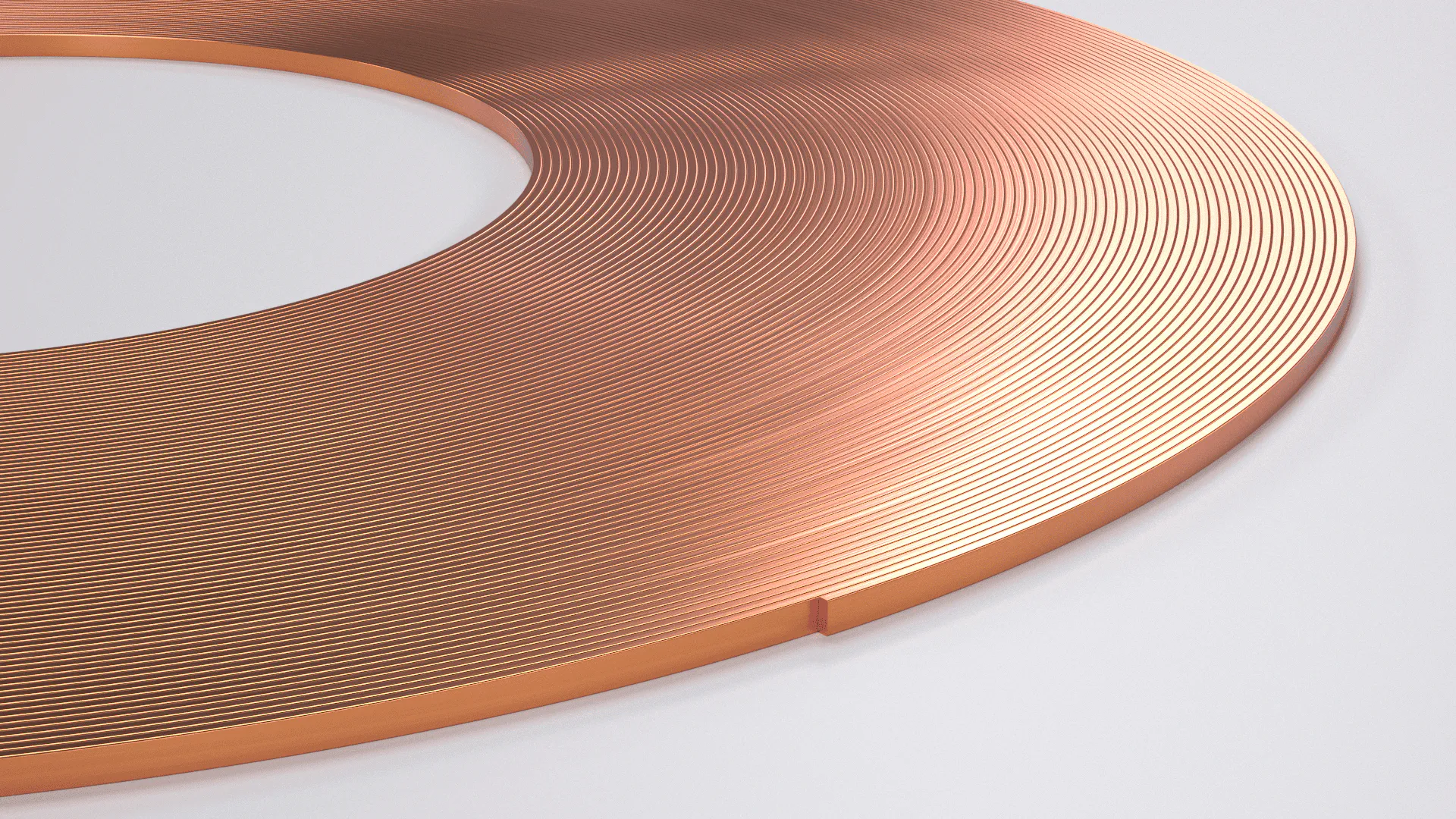

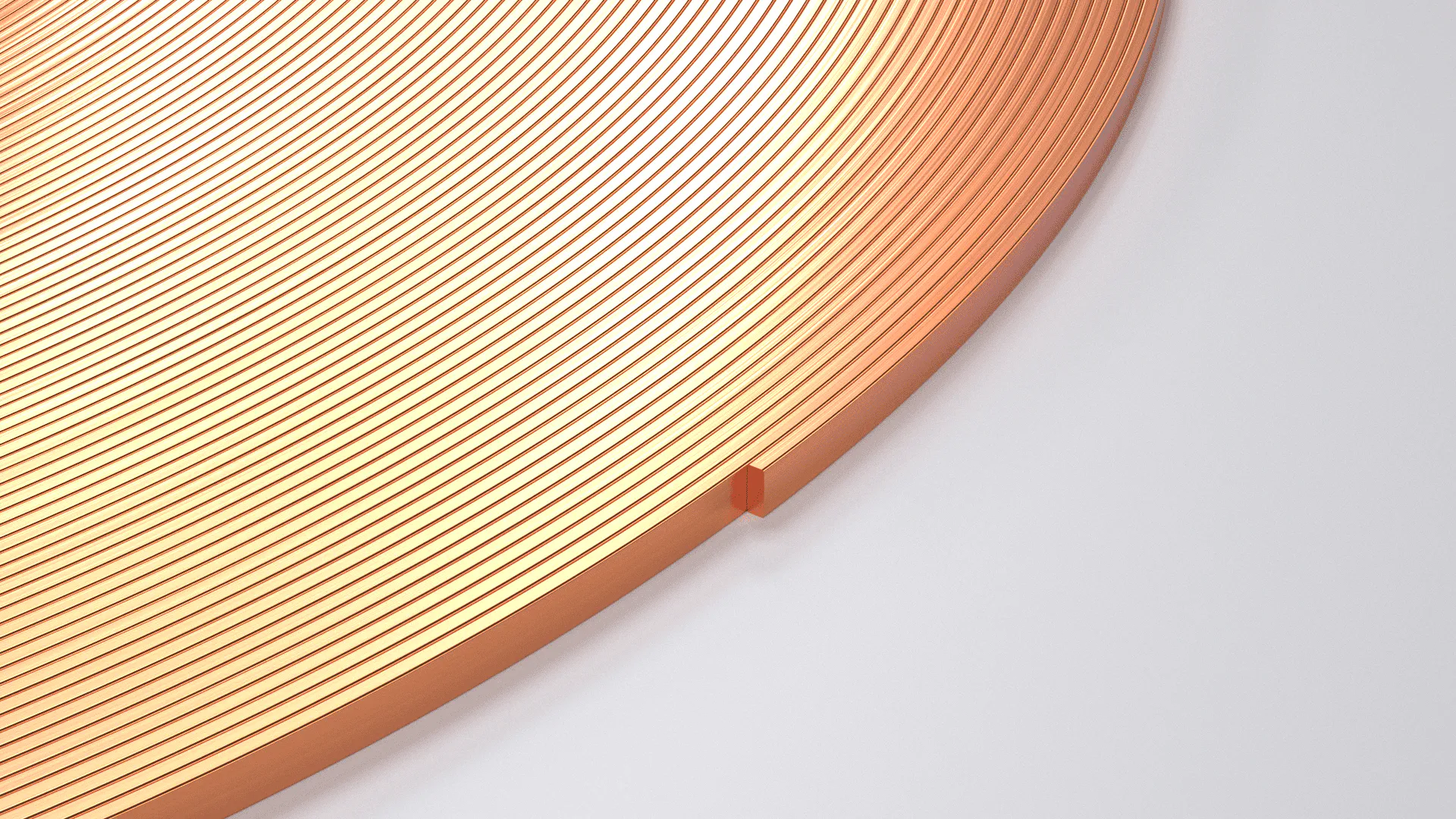

Bus bars, with sharp, round or full radius edges; from R200 to R300, including all intermediate tempers.

TemperThickness (mm)Width (mm)Packing
Soft/Half hard/Hard R200 – R3002 – 815 – 105In coils on wooden packets
incl. all intermediate tempersCOD: max. 1400 mmIn coils on wooden packets
CID: 500, 400, 600 mmIn coils on wooden packets
